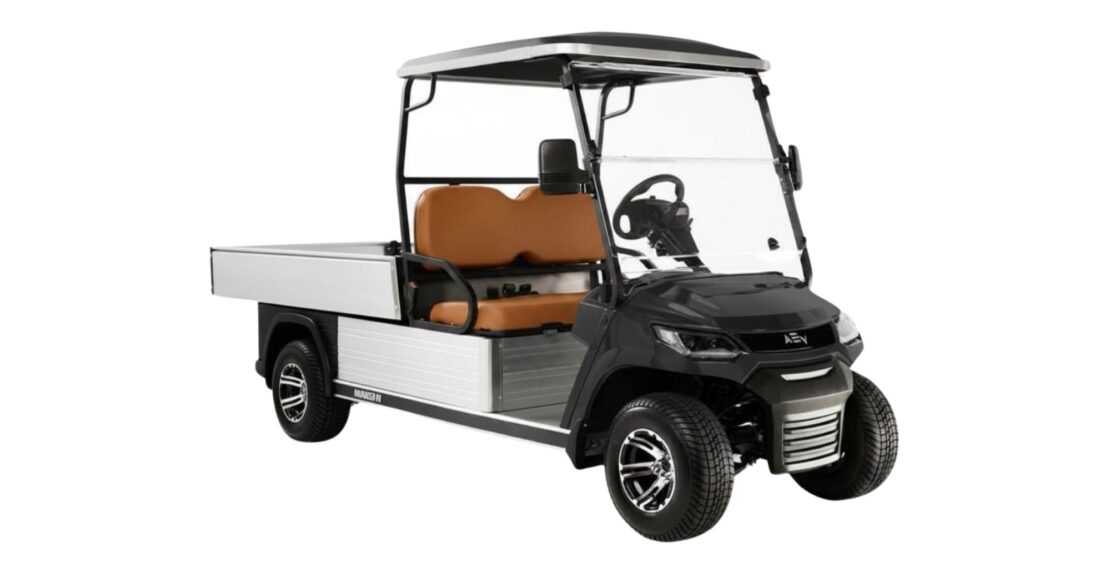

Street Legal LSV! Electrical Systems
- Controller – AdvancedEV Controller 48V 450AMP
- Motor – AC Motor 48V/5KW
- Charger – ECO 51.2 Volt 15Ah Lithium Onboard Charger
- Battery – ECO 51.2 Volt 160Ah Lithium Battery Pack.
Body Configuration
- Windshield – Folding Acrylic/DOT Approved
- Roof – Aluminum Alloy Frame
- Floor – Aluminum Profile Non-Slip Floor, High Strength Structure, Corrosion Resistant, Aging Resistant.
- Mirrors – Adjustable & Foldable Side Mirrors
- Lights – Adjustable High/Low Beam LED Headlights, LED Daytime Running Lights, LED Tail Lights, Brake Lights, Single Arm Combination Turn Signal with Horn Switch.
- Safety – Safety Retractable Seat Belts With Safety Reverse Buzzer, With 4 Way Emergency Flashers.
- Dash – Molded Instrument Panel, Locking Glove Box Doors, LCD Multi-Media Bluetooth Touch Screen Monitor W/External Speakers, LED Speedometer, FNR Switch, Reverse Back Up Camera, Multiple Cup Holders, Double USB & Type C Ports, 12V Power Supply
- Steering – Double-Ended Rack And Pinion, Self-Adjusting, With Custom Steering Wheel.
- Braking System – Four Wheel Hydraulic Disc Brake + Electromagnetic Motor Parking Brake.
- Front Suspension – Double A-Frame Independent Front Suspension + Coil Spring over Hydraulic Shock Absorbers.
- Rear Suspension – HD Rear Coil Springs over Hydraulic Shock Absorbers + Rear Stabilizing SwayBar, Split Case Transaxle 16:1 Gear Ratio.
- Tires – 215×50-12 Tire With Aluminum Alloy Wheels
Dimensions + Performance
- Overall – LxWxH: 11’11”L x 3’10”W x 6’H
- Box – LxWxH: 5’9”L x 3’6”W x 10”H
- Carrying Capacity – 1100 lbs Approx
- Curb Weight – 1490 lbs
